ALLIED TELESIS INC.

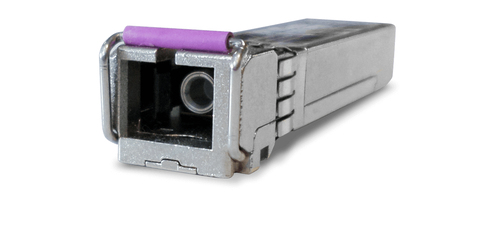

Allied Telesis AT-SPBD20-14-EXT network transceiver module Fiber optic 1000 Mbit/s SFP
Part number AT-SPBD20-14-EXT
SFP/SC 1G BIDI 20KM 1490TX/ 1310RXDUSTRIAL TEMP -40 TO 85C
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-SPBD20-14-EXT
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | SC |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Tx power (min) | 2 dBmW |
| Tx power (max) | 7 dBmW |
| Link budget | 31 dB |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
| Product colour | Metallic |
|---|---|
| Plug and Play | Yes |
| Hot-swap | Yes |
| Operating temperature (T-T) | -40 - 85 °C |
|---|---|
| Operating temperature (T-T) | -40 - 185 °F |
| Quantity per pack | 1 pc(s) |
|---|
| RX sensitivity | -29 dB |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
