Overview

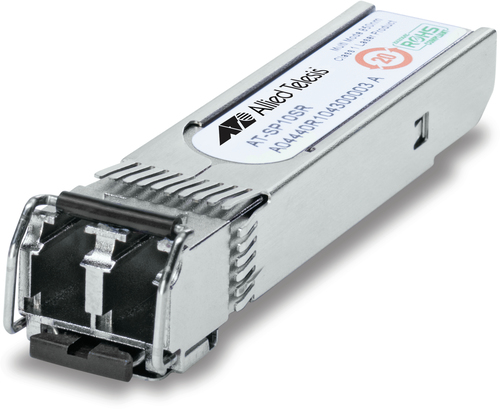

The Allied Telesis SP10SR is a hot pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
Specifications
Performance
| SFP transceiver type | Fiber optic |
|---|
| Maximum data transfer rate | 10300 Mbit/s |
|---|
| Interface type | SFP+ |
|---|
| Multi-mode fiber (MMF) supported | Yes |
|---|
| Fiber optic connector | LC |
|---|
| SFP transceiver standard | SR |
|---|
| Maximum transfer distance | 300 m |
|---|
| Wavelength | 850 nm |
|---|
| Tx power (min) | -5 dBmW |
|---|
| Tx power (max) | -1 dBmW |
|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
|---|
Features
| Product colour | Metallic |
|---|
Power
| Power consumption (typical) | 1 W |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 85 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85% |
|---|
| Storage relative humidity (H-H) | 0 - 85% |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Other features
| RX sensitivity | -9.9 dB |
|---|
