ALLIED TELESIS INC.

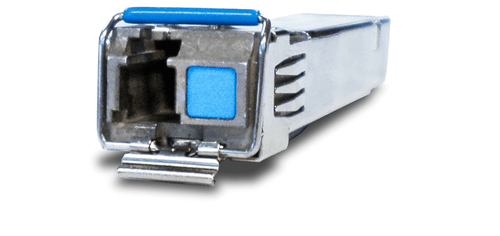

Allied Telesis SP10BD10/I-12 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1330 nm
Part number AT-SP10BD10/I-12
TAA 10G BIDI 10KM LC EXT TEMP -40 TO 85CTAA 10G BIDI 10KM LC 127
- 10Gbps data rate
- Compact size
- Flexible architecture
- Hot-swappable
- RoHS compliant
- Compliant to SFP+ Electrical MSA SFF-8431
- Compliant to SFF-8472 MSA
- Lower power consumption < 1 Watt
- Digital diagnostics monitoring (DDM)
- Maximum data rate of 10.3Gbps
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-SP10BD10/I-12
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1330 nm |
| Tx power (min) | -6 dBmW |
| Tx power (max) | -1 dBmW |
| Link budget | 8 dB |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
|---|---|
| Housing material | Metal |
| Hot-swap | Yes |
| Power consumption (typical) | 1 W |
|---|
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | -40 - 85 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Quantity per pack | 1 pc(s) |
|---|
| RX sensitivity | -14 dB |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
