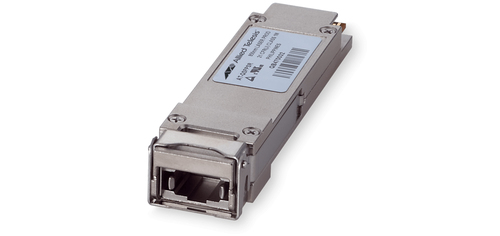

Allied Telesis QSFPSR4LC network transceiver module Fiber optic 40000 Mbit/s QSFP 850 nm
Part number AT-QSFPSR4LC
TAA 40G QSFP+ SR4 LC (100-150M 850NM)TAA 40G QSFP+ SR4 LC 100-150
- Compliant with 40GbE Specification IEEE 802.3ba
- Compliant with industry-standard SFF-8436
- Compact size
- Flexible architecture
- High port density
- Hot-swappable
- RoHS compliant (SR4), RoHS-6 compliant (LR4)
- Supports Digital Diagnostics Monitoring (DDM)
- MSA compliant
- 4 CWDM lanes MUX/DEMUX design on LR4 and ER4
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-QSFPSR4LC
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
40 Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis QSFP Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
Options
Allied Telesis QSFP Series Gigabit Small Form-Factor Pluggables (SFPs) are supported on all Allied Telesis devices with SFP uplink connections.
The hot-swappable feature of the QSFP Series allows for network changes without removal or reconfiguration of costly network equipment.
Applications
The QSFP Series supports 40GbE and high-density 10GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.
Interoperability
The Allied Telesis QSFP Series is fully compliant with industry-standard networking regulations. This allows Allied Telesis QSFP modules to be used on any networking equipment which complies with industry standards.
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Tx power (min) | -4 dBmW |
| Tx power (max) | 5 dBmW |
| Link budget | 7 dB |
| Networking standards | IEEE 802.3ba |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
|---|---|
| Housing material | Metal |
| Hot-swap | Yes |
| Power consumption (typical) | 1.5 W |
|---|
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Quantity per pack | 1 pc(s) |
|---|
| RX sensitivity | -11 dB |
|---|
| Harmonized System (HS) code | 85369010 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
