Overview

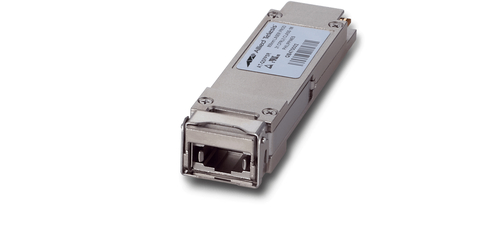

Allied Telesis QSFP Series pluggable optical modules offer the latest industry-standard 40 Gigabit Ethernet connectivity in a flexible, small form factor.
These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
Specifications
Performance
| SFP transceiver type | Fiber optic |
|---|
| Maximum data transfer rate | 10300 Mbit/s |
|---|
| Interface type | QSFP+ |
|---|
| Multi-mode fiber (MMF) supported | Yes |
|---|
| Fiber optic connector | MPO |
|---|
| SFP transceiver standard | SR4 |
|---|
| Maximum transfer distance | 150 m |
|---|
| Wavelength | 850 nm |
|---|
| Tx power (min) | -7.6 dBmW |
|---|
| Tx power (max) | 2.4 dBmW |
|---|
| Networking standards | IEEE 802.3ba |
|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
|---|
| Fiber ports quantity | 1 |
|---|
Features
| Product colour | Grey |
|---|
| Hot-swap | Yes |
|---|
Power
| Power consumption (typical) | 1.5 W |
|---|
| Power over Ethernet (PoE) | No |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|
| Storage temperature (T-T) | -20 - 80 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85% |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Other features
| RX sensitivity | -3 dB |
|---|
Logistics data
| Harmonized System (HS) code | 85369010 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
