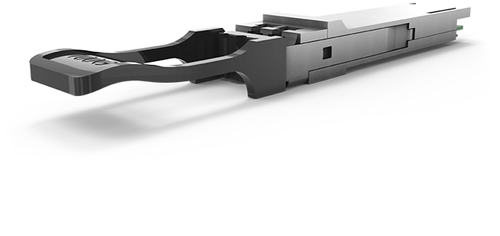

Allied Telesis QSFP28-SR4 network transceiver module Fiber optic 100000 Mbit/s 850 nm
Part number AT-QSFP28SR4
QSFP28 100G SR4, MULTI MODE MODE, 150M
- Compliant to IEEE 802.3bm 100GBASE-SR4 standard (QSFP28-SR4)
- Compliant to IEEE 802.3ba 100GBASE-LR4 standard (QSFP28-LR4)
- MSA compliant
- Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
- Up to 25Gbps data rate per wavelength
- Up to 10 km transmission on single mode fiber (SMF)
- Operating case temperature: 0~70°C
- Low power consumption of max 2.5W (Typ. 1.8W) (SR4) and 4.0W (LR4)
- MPO connector (SR4)
- LC duplex connector (LR4)
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-QSFP28SR4
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
Quad Small Form-Factor Pluggable Modules
The Allied Telesis QSFP28 Series offers the latest industry-standard
connectivity in a flexible, small form factor. These hot-swappable
transceiver modules simply plug into any compatible Allied Telesis product.
Options
Allied Telesis QSFP28 Series 100 Gigabit Quad Small Form-Factor Pluggables (QSFPs) are supported on all Allied Telesis devices with QSFP28 uplink connections.
The QSFP28 is hot-swappable to allow for network changes without removal or reconfiguration of costly network equipment.
Applications
The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.
Interoperability
The Allied Telesis QSFP28 is fully compliant with industry-standard networking regulations so it may be used on any networking equipment which complies with industry standards.
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Link budget | 6 dB |
| Ethernet interface type | 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
|---|
| Power consumption (typical) | 2.5 W |
|---|
| Compliance certificates | RoHS |
|---|
| Sustainability compliance | Yes |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Quantity per pack | 1 pc(s) |
|---|
