Fast Ethernet and Gigabit Fiber to POE+ Media and Rate Converters

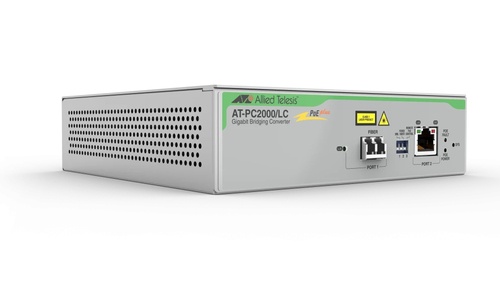

Allied Telesis PC200/2000 Series Media Converters are the ideal solution for powering remote devices such as IP phones, video cameras and wireless access points.
Specifications
Network
Maximum data transfer rate
1000 Mbit/s
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148880 pps
Packet forwarding rate (1 Gbps)
1488000 pps
Jumbo frames support
Yes
Auto MDI/MDI-X
Yes
Store-and-forward
Yes
Performance
Maximum transfer distance
1000 m
Wavelength
850 nm
Features
Internal
No
LED indicators
Activity, Link, Network, PoE
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
LC
Power over Ethernet plus (PoE+) ports quantity
1
Power
Input voltage
100 - 240 V
AC input frequency
50 Hz
Power consumption (typical)
35 W
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W
Weight & dimensions
Width
155 mm
Depth
149 mm
Height
40 mm
Weight
748 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Packaging content
AC adapter included
Yes
Certificates
Certification
FCC Class B
EN55022 Class A
C-Tick
CE
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
