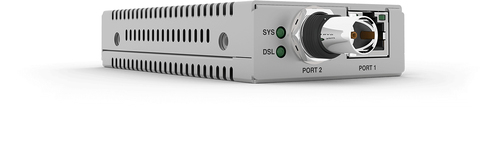

Allied Telesis AT-MMC6006-60 network media converter 1000 Mbit/s Grey
Part number AT-MMC6006-60
10/100/1000T TO BNC (VDSL2) MINI MEDIA & RATE CONVERTER
Wired
1000 Mbit/s 3000 m
Ethernet LAN (RJ-45) ports: 1 DC-in jack
Grey
Manufacturer
ALLIED TELESIS INC.
Part number
AT-MMC6006-60
Condition
New
Category
Network Devices › Transceivers
1GPA category
Hardware
Overview
Used as a pair, two Allied Telesis MMC6006 units provide up to 300Mpbs total bandwidth over coax cabling, at distances up to 3 km, to provide the ideal solution for data over coax.
Specifications
Network
Maximum data transfer rate
1000 Mbit/s
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full, Half
Modulation
DMT
Performance
Maximum transfer distance
3000 m
Features
Internal
No
LED indicators
Activity, LAN, Link, System
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
BNC ports quantity
1
DC-in jack
Yes
Power
Input voltage
120 V
AC input frequency
60 Hz
Output voltage
12 V
Output current
0.3 A
Power consumption (typical)
2 W
Weight & dimensions
Width
50.8 mm
Depth
99.1 mm
Height
20.3 mm
Weight
200 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Packaging content
AC adapter included
Yes
Certificates
Certification
UL 1950
CSA
EN 55022 class B
EN 60950 (TUV)
EN 50082-1
Logistics data
Country of origin
China
Harmonized System (HS) code
85176990
