ALLIED TELESIS INC.

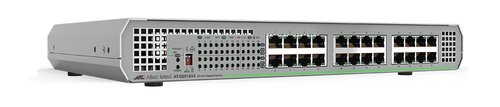

Allied Telesis GS910/24 Unmanaged 10G Ethernet (100/1000/10000) Grey

Part number AT-GS910/24-10

24-PORT 10/100/1000T UNMANAGED SWITCH WITH INTERNAL PSU

Power-saving features on each port including: cable length detection and power minimization, link-down power savings
Wirespeed performance
Non-blocking architecture
Auto-negotiation Gigabit ports
Auto MDI/MDI-X on TX ports
Full-duplex flow control
Sturdy metal case
Silent operation; fanless
Operating temperature 0-50°C
EAP/BPDU passthrough

Manufacturer: ALLIED TELESIS INC.
Part number: AT-GS910/24-10
Condition: New
Category: Network Devices › Switches & Hubs
1GPA category: Hardware

Overview

Gigabit Ethernet Unmanaged Switch

The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.

Specifications

Management features
Switch type	Unmanaged

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity	24

Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes

Data transmission
Switching capacity	48 Gbit/s
Throughput	35.7 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.524 MB

Security
Security algorithms	EAP
Loop protection	Yes
BPDU tunneling	Yes

Design
Rack mounting	No
Product colour	Grey
LED indicators	Yes
Safety	UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB)

Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.3 A
Power consumption (max)	17 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	No

Operational conditions
Operating temperature (T-T)	0 - 50 °C

Weight & dimensions
Width	341 mm
Depth	210 mm
Height	44 mm
Weight	2.1 kg

Certificates
Certification	EAC, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
