ALLIED TELESIS INC.

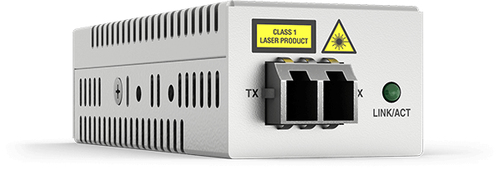

Allied Telesis AT-DMC1000/LC-90 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
Part number AT-DMC1000/LC-90
1000T TO 1000X/LC, DESKTOP MINI CONVERTER, US POWER, TAA
- Wired
- 1000 Mbit/s 550 m 850 nm
- 1000BASE-T
- 1000BASE-SX
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Multi-mode Fiber ports quantity: 2 LC
- Grey
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-DMC1000/LC-90
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
Gigabit Desktop USB-Powered Media Converter
This desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Specifications
| Maximum data transfer rate | 1000 Mbit/s |
|---|---|
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-SX |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 550 m |
|---|---|
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Internal | No |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Input voltage | 5 V |
|---|
| Width | 31.8 mm |
|---|---|
| Depth | 91.4 mm |
| Height | 21.6 mm |
| Weight | 113.4 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Compliance certificates | RoHS |
|---|---|
| Safety | U L60950-1, EN 60950-1 |
| Certification | FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI |
