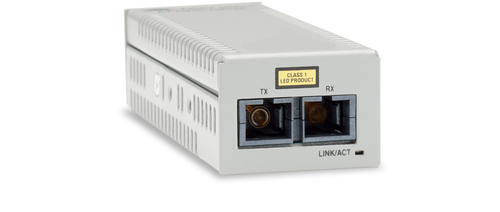

At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact—with a small carbon footprint—the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements
Specifications
Network
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.1Q
Fiber ethernet cabling technology
100BASE-FX
Data transfer rate
100 Mbit/s
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full, Half
Link Loss Carry Forward (LLCF) supported
Yes
Link Loss Return (LLR) supported
Yes
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-22.5 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Rx power (max)
-14 dBmW
Features
Internal
No
LED indicators
Yes
Product colour
Grey
DIN rail mounting
Yes
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
LC
Weight & dimensions
Width
31.8 mm
Depth
91.4 mm
Height
21.6 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Certificates
Compliance certificates
RoHS
