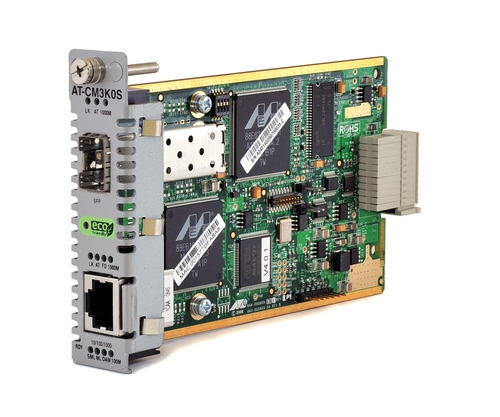

Allied Telesis AT-CM3K0S network media converter 1000 Mbit/s
Part number AT-CM3K0S
CONVERTEON MODULE: 10/100/1000TX TO SFP LC
- Manufacturer
- ALLIED TELESIS INC.
- Part number
- AT-CM3K0S
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
This media and rate converter line card features a 10/100/1000T twisted pair port and an optical SFP port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet or Gigabit Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CM3K0S has a SFP port supporting both Fast Ethernet and Gigabit operation, allowing a choice of multi/single mode, dual/single fiber SFP modules.
- Converts speed as well as media type
- Extends Ethernet and Fast Ethernet and Gigabit Ethernet networks
- Supports IEEE 802.3ah ‘Ethernet in the First Mile’
- Support MissingLink™ and Smart MissingLink™
- Transparent to IEEE 802.1Q VLAN packets
- Jumbo Frame Support
- Rate Limiting
- Low Power Mode
- Supports Dying Gasp
- Automatic address learning and aging
- Managed, or Unmanaged operation
- Auto MDI/MDI-X
- Auto-Negotiation (IEEE 802.3u-compliant)
- Store and forward data packet handling
- Supports 100 and 1000Mbps SFPs
- System and port LEDs
- Line card for all Converteon™ series chassis
- Limited lifetime warranty
Specifications
| Maximum data transfer rate | 1000 Mbit/s |
|---|---|
| Cabling technology | 10/100/1000T |
| Mean time between failures (MTBF) | 1530000 h |
|---|
| Compliance industry standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah |
|---|
| Connectivity technology | Wired |
|---|
| Power consumption (typical) | 6 W |
|---|
| Weight | 113 g |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Safety | UL 60950-1 (cULUS), EN-60950-1 (TUV), EN-60825 |
|---|---|
| Certification | FCC, EN-55022, VCCI, C-Tick, CE. |
| Harmonized System (HS) code | 85176990 |
|---|
| Dimensions (WxDxH) | 22 x 73 x 130 mm |
|---|---|
| MAC address table | 1000 entries |
| Packet transfer speed | 14880, 148800, 1488000 pps |
| Full duplex | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
