Overview

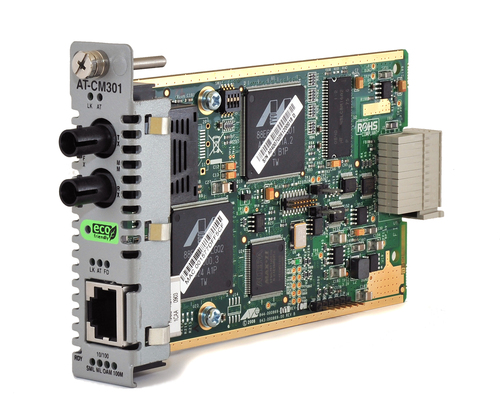

This media and rate converter line card features a 10/100TX twisted pair port and a 100FX optical port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CM301 has a multi mode fiber ST connector and operates up to 2km.
Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | PC Card |
|---|
| Interface | Ethernet |
|---|
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.3u |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| Full duplex | Yes |
|---|
| Jumbo frames support | Yes |
|---|
| Maximum operating distance | 100 m |
|---|
Design
| Component for | PC |
|---|
| Product colour | Silver |
|---|
| Internal | Yes |
|---|
| LED indicators | LAN, Power |
|---|
| Mean time between failures (MTBF) | 1500000 h |
|---|
| Safety | UL 60950-1 (cULUS), EN-60950-1 (TUV), EN-60825 |
|---|
| Certification | FCC, EN-55022, VCCI, C-Tick, CE. |
|---|
Power
| Power consumption (typical) | 5.5 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3048 m |
|---|
Weight & dimensions
| Width | 22 mm |
|---|
| Depth | 73 mm |
|---|
| Height | 130 mm |
|---|
| Weight | 113 g |
|---|
Other features
| Compliance industry standards | IEEE 802.3u, IEEE 802.3ah |
|---|
| Flow control support | Yes |
|---|
| Dimensions (WxDxH) | 22 x 73 x 130 mm |
|---|
| Networking features | Fast Ethernet |
|---|
| Ports quantity | 1 |
|---|
| Link/Act LED | Yes |
|---|
| Wireless connection | No |
|---|
