ALLIED TELESIS INC.

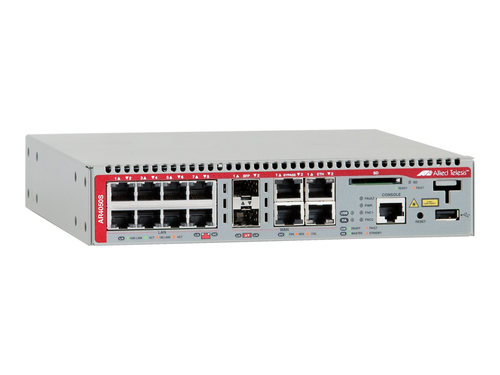

Allied Telesis AR4050S hardware firewall 1.9 Gbit/s

Part number AT-AR4050S-10

VPN ROUTER/NGFW WITH 2XGE WAN PORTS WITH BYPASS 8XGE LAN PORTS 2

  • Firewall throughput: 1900 Mbit/s
  • Built-in processor 1560 MHz
  • Wired
  • 2048 MB
  • 27 W
Manufacturer
ALLIED TELESIS INC.
Part number
AT-AR4050S-10
Condition
New
Category
Network Devices › Switches & Hubs
1GPA category
Hardware

Overview

The AR4050S UTM Firewall consolidates threat protection, application and web control capabilities into a single device - ensuring the security of business communications. Together with advanced routing and switching, the high-performance AR4050S integrated security platform is the ideal choice for Enterprise gateway applications.

The quad-core processor delivers powerful performance, significantly increasing throughput and enabling simultaneous packet inspection. It is optimized for single-pass low-latency traffic inspection. Security engines and threat signature databases from the industry’s leading vendors, with regular updates, provide up-to-the-minute protection against malware, viruses and other cyber-attacks.

- High availability bypass ports allow device redundancy with a single WAN link, reducing ongoing ISP fees. If the Master firewall loses power, traffic is automatically forwarded to the backup device.

- A USB interface supports 3G/4G connectivity, so data transfer can automatically switch to a mobile network when a primary WAN connection becomes unavailable.

- An SD card slot allows easy backup of important files.

- Autonomous Management Framework™ (AMF) compatibility automates device back-up for plug-and-play recovery.

Specifications

Data transmission
Firewall throughput1.9 Gbit/s
VPN throughput1 Gbit/s
IPS/IDS throughput750 Mbit/s
Maximum firewall connections per second12000
Performance
Built-in processorYes
Internal memory2048 MB
Processor frequency1560 MHz
Processor cores2
Concurrent connections300000
Noise level35.1 dB
Network
Networking standardsIEEE 802.1Q, IEEE 802.3ad
Multicast supportYes
DHCP serverYes
DHCP clientYes
Port forwardingYes
Point-to-point protocol over Ethernet (PPPoE)Yes
Security
Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, WEP, WPA
VPN supportIPsec, SHA-1, SHA-256, SHA-512, IKEv2, SSL/TLS VPN
Protocols
Routing protocolsBGP4+, OSPF, OSPFv3, RIP, RIPng
Ports & interfaces
Connectivity technologyWired
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports8
WAN connectionEthernet (RJ-45)
Compatible memory cardsSD, SDHC
Storage
Flash memory4096 MB
Power
AC input voltage90-260 V
AC input frequency47/63 Hz
Power consumption (typical)27 W
Power consumption (max)27 W
Certificates
CertificationEN55022 class A, FCC class A, VCCI class A EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TuV RoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 80%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 2000 m
Weight & dimensions
Dimensions (WxDxH)425 x 210 x 220 mm
Weight1.7 kg
Packaging data
Package width365 mm
Package height260 mm
Package depth115 mm
Package weight2.6 kg
Other features
Firewall throughput1900 Mbit/s
VPN throughput1000 Mbit/s

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
