Products › Network Devices

ALLIED TELESIS INC.

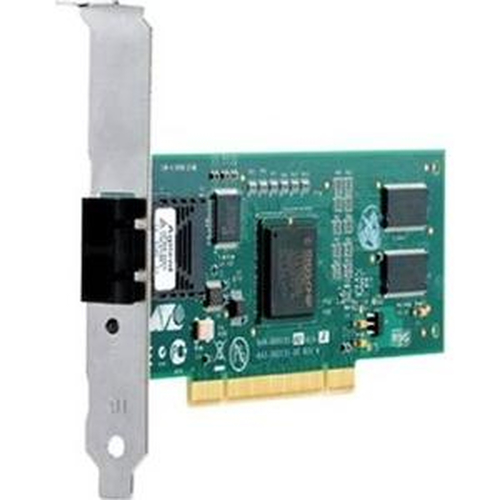

Allied Telesis AT-2911SX/LC-901 network card Internal Fiber 1000 Mbit/s

Part number AT-2911SX/LC-901

FED COMP.32/64 BIT,PCI-EXPRS,ADPTER CARD - THE ALLIED TELESIS 2911 SERIES GIGABI

  • Wired
  • PCI Express Fiber
  • 1000 Mbit/s
  • Internal
Manufacturer
ALLIED TELESIS INC.
Part number
AT-2911SX/LC-901
Condition
New
Category
Network Devices › Network Interface
1GPA category
Hardware

Overview

Allied Telesis AT-2911 Series Network Interface Cards feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.

High Reliability

The AT-2911 Series Gigabit interface comes with a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.

Advanced Manageability

The priority queuing offered by the AT-2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data.

Specifications

Ports & interfaces
Connectivity technologyWired
Host interfacePCI Express
InterfaceFiber
Fiber ports quantity1
Fiber optic connectorLC
Network
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technology1000BASE‑SX
Jumbo frames supportYes
Design
InternalYes
LED indicatorsYes
CertificationUL FCC/EN55022 A TUV EN55024 CE C-TICK VCCI
Power
Output voltage3.3 V
Power consumption (typical)9.2 W
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Width87 mm
Height56 mm
Weight700 g
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code85176990
Other features
Flow control supportYes
Management protocolsSNMP
Link/Act LEDYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
